Description

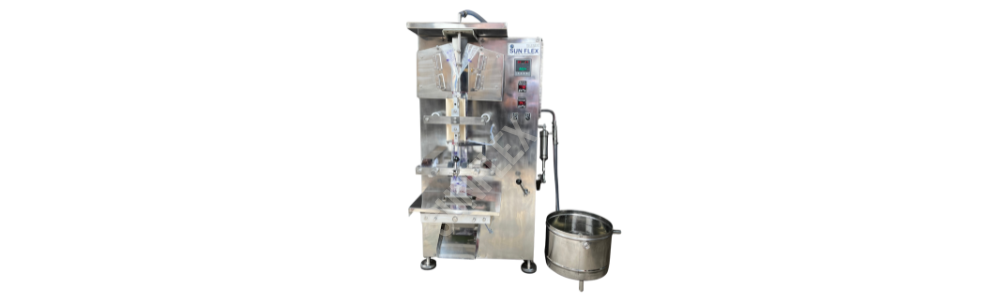

SUNFLEX MAG-100
Mechanically Operated Automatic Form, Fill & Seal Machine with Volumetric Cup Filling System. Filling Range : 10 – 50 Gram/20-100 Grams
Technical Specifications
| Model : | SUNFLEX- AG-50 (Mechanical Model) |
| System : | Automatic mechanically operated volumetric cup filling machine. |
| Packing Material: | Any Heat Sealable Laminated Film |
| Filling Capacity : | 10- 50 Gram/20 – 100 Gram |
| Filling System : | Volumetric Cup Filler |
| Fill Accuracy : | +2% |
| Fill Speed (approx.) : | 25– 30 Pouches/min (Depends on Product Nature) |
| Seal Type: | Side Seal/Center Seal |
| Pouch Length : | According to print mark |
| System of Operation: | T.C. control |
| Motor : | 0.5 HP, 230 V AC, Single Phase @50Hz. |
| Power Required : | 1.5Kw/h / 1Ø / 230 VAC, 50 HZ + 5% |
| System Weight : | 250 Kg’s. (Approx.) |
| System Dimension : | W x D x H (Approx.) 600mm x 750mm x 1900mm (Single head) |
| Material of Construction : | All parts coming in to contact with the product ASI 304 Food Grade Stainless Steel and other are Mild Steel duly painted. |
Optional Accessories
1. Extra former
2. Date Coding
Application
1. Whole Spices Like Jeera, Dhania, Methi, Rai (Mustard)
2. Saunf, Mouth freshener, Sweet Supari
3. ORS
4. Tea Powder
5. Namakeen
6. Fertilizer Granules
7. Seeds like: Pumpkin, Sunflower, Cucumber etc
